UniQue HDTV Splitter - 8 Port HDMI Splitter, Display Devices Simultaneously, 4K X 2K Ultra HD Up To 4K 60Hz Output, Support 3D Content, 8dB Receiver To Compensate For Longer Length, 3dB Driver Pre-Emphasis To Compensate To PCB Loses, HDMI v1.4 and HDCP 1.2 Protocol Compliant, Support Digital Audio Split in HDMI, LED Indication, 2.25Gbps x 3 Data Transfer Speed, DC5V Power Supply, Retail Box, 3 Months Warranty

Product Overview

The HDSP0108 HDMI splitter distributes a single HDMI signal to 8 displays simultaneously, supporting 4K UHD and 3D content from devices like PlayStation 3 and Blu-ray players. It complies with HDMI 1.4 and HDCP 1.2, features advanced equalization for signal integrity, and digital audio support including Dolby TrueHD and DTS 7.1. LED indicators show HDCP status for sources and displays, making it ideal for large, multi-display setups.

Features

•It Is Applicable to Source Device And High Definition Display Device
•Such As DVD And HDTV Which Have HDTV Ports Or Digital Ports And Are Compliant With HDCP Protocol
•Support High Resolutions Up To 1920*1200, Including 480i/p, 576i/p, 720i/p, 1080i, 1080p.
•Extend The Transmission Distance And Improves Transmission Signal.
•Compatible With DVI By Using a HDTV To DVI Adapter.
•Plug And Play
•Metal Casing Design And Overall Shielding Without Signal Interference.
•LED Indicates Signal And Power Mode
•Power Supply: DC 5V

Specifications

•Product Code: UQ-8PHDMIS

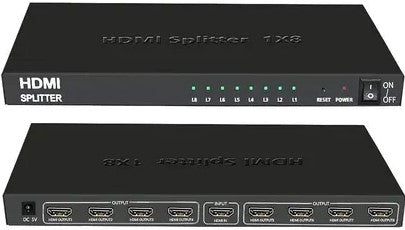

•Description: UniQue 4K x 2K Ultra HD 8 Port HDTV Splitter
•Splits the HDMI signal to 8 x HDMI display devices simultaneously
•Supports 3D content from Playstation 3, 3D Blu-ray etc.
•Each port supports HDMI or DVI inputs
•8dB receiver equalization to compensate for longer length HDMI cable signal losses
•3dB driver pre-emphasis to compensate to PCB losses.
•HDMI v1.4 and HDCP 1.2 protocol compliant.
•Support digital audio split in HDMI, such as LPCM / Dolby-AC3 / DTS 7.1 / DSD / Dolby TrueHD / Dolby Master Audio.
•UltraHD 4k x 2k (uHD) support 3840 x 2160 cascaded above 3 layers –> Stack these 1 x 8 splitters to distribute to 8 x 8 x 8 (3-layers) displays e.g. distribute the audio and video from a single HDPVR / PS3 or other HDMI device to 512 LCD’s / Plasma’s or Projectors!
•LED Indication: When source device and the sink display devices work in HDCP status, the color of the LED relative to the sink will be blue. When source is Non-HDCP, the color of the LED relative to the sink will be red.
•Dimension(L x W x H) : 320mm x 100mm x 36mm
•Data transfer speed : 2.25Gbps x 3
•DC5V power supply
