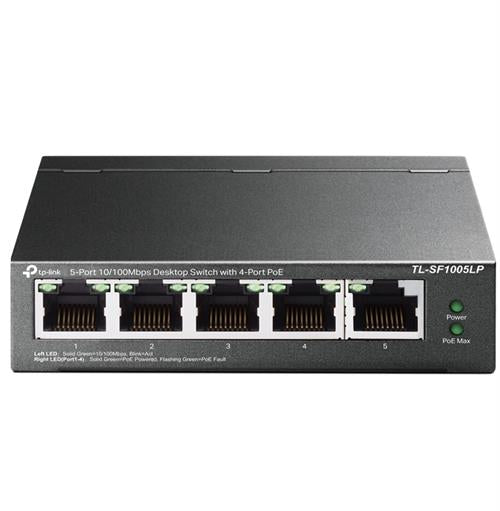

TP Link 5 Port 100Mbps Desktop Switch
TP Link 5 Port 100Mbps Desktop Switch
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
SKU
TL-SF1005LPVendor
TP-LinkProduct Type
Ethernet Switches PoEHurry! Only 1 left in stock
Estimated delivery: 5-7 Days from order date.
Free Shipping & Returns: On orders above $79
Let us know abour your query!
Contact Us
Description
Shipping Information
Reviews
Description
TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE, Retail Box, 1 year Limited Warranty
Product Overview
The TP-Link 5-Port 10/100Mbps Desktop Switch features five RJ45 ports, with four PoE ports that deliver both data and power over a single cable, supporting IEEE 802.3af compliant devices. It provides a maximum power output of 15.4W per port, making it suitable for powering devices like IP cameras and access points.
Specifications
•Product code:TL-SF1005LP
•Description: TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
•5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
•AUTO Negotiation
•AUTO MDI/MDIX
•10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•Fan Quantity Fanless
•Physical Security Lock Yes
•External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
•Packet Forwarding Rate 0.744 Mpps
•PoE Ports (RJ45)
•Standard: 802.3 af compliant
•PoE Ports: Ports 1–4
•Power Supply: 41 W
•Mac Address Table 2K
•Jumbo Frame 2 KB
•Switching Capacity 1 Gbps
•Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
•1.9 W (220 V / 50 Hz, no PD connected)
•47 W (220 V / 50 Hz, with 41 W PD connected)
•Max Heat Dissipation
•6.48 BTU/h(no PD connected)
•160.27 BTU/h(with 41 W PD connected)
•Transmission Method Store-And-Forward
•Compatible With IEEE 802.3af/at Compliant PDs
•Extend Mode Button (Ports 1–4)
•Priority Mode Button (Ports 1–2)
•Mac Address Auto-Learning And Auto-Aging
•Jumbo Frame 2 KB
•Switching Capacity 1 Gbps
•Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
•1.9 W (220 V / 50 Hz, no PD connected)
•47 W (220 V / 50 Hz, with 41 W PD connected)
•Max Heat Dissipation
•6.48 BTU/h(no PD connected)
•160.27 BTU/h(with 41 W PD connected)
•Transmission Method Store-And-Forward
•Advanced Functions
•Compatible With IEEE 802.3af/at Compliant PDs
•Extend Mode Button (Ports 1–4)
•Priority Mode Button (Ports 1–2)
•Mac Address Auto-Learning And Auto-Aging
