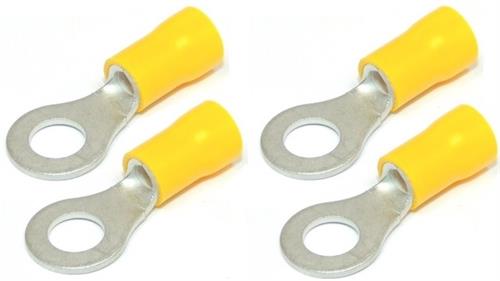

Solarix M6 Insulated Ring Solar PV Terminal Connector Pack
Solarix M6 Insulated Ring Solar PV Terminal Connector Pack
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
SKU
SOLLR40064PCKVendor
SolarixProduct Type
Inverter and Solar Accessories19 in stock
Estimated delivery: 5-7 Days from order date.
Free Shipping & Returns: On orders above $79
Let us know abour your query!
Contact Us
Description
Shipping Information
Reviews
Description
Solarix M6 Insulated Ring Solar PV Terminal Connector Pack of 4-M6 Stud Size, 4mm² to 6mm² Solar PV Cable, Also Known As A Ring Connector Or Cable Lug, Yellow Sleeve, Sold As Pack Of 4, Retail Box , No warranty
Product Overview
The Solarix M6 Insulated Ring Solar PV Terminal Connector also known as a ring connector or cable lugs. Ring crimp terminals are used for connecting an electrical cable or Solar PV wire to a stud or a post on an electrical component such as a battery terminal. This ring terminal is made from highly conductive tin plated for maximum electrical conductivity and corrosion resistance. A yellow colour coded vinyl insulation provides protection to the terminal Once correctly crimped onto a wire or cable this ring terminal will provide a secure and reliable connection. Sold As Pack Of 4
Highlights
• Solarix M6 Insulated Ring Solar PV Terminal Connector
• M6 Stud Size
• Used on 4mm² to 6mm² Solar PV Cables
• Inner Ring Diameter 6.35mm
• Outer Ring Diameter 10mm
• Also Known As A Ring Connector Or Cable Lug
• Yellow Sleeve
• Sold As Pack Of 4
• Solarix M6 Insulated Ring Solar PV Terminal Connector
• M6 Stud Size
• Used on 4mm² to 6mm² Solar PV Cables
• Inner Ring Diameter 6.35mm
• Outer Ring Diameter 10mm
• Also Known As A Ring Connector Or Cable Lug
• Yellow Sleeve
• Sold As Pack Of 4
Specifications
• Stock code SOLLR40064PCK
• Solarix M6 Insulated Ring Solar PV Terminal Connector Pack of 4
• Insulation Material Yellow PVC
• Inner Ring Diameter 6.35mm
• Outer Ring Diameter 10mm
• Minimum Wire Size mm² 2.5mm²
• Maximum Wire Size mm² 6mm²
• Minimum Wire Size AWG 12AWG
• Maximum Wire Size AWG 10AWG
• Stud Size M6
• Sleeve Colour Yellow
• Contact Plating Tin
• Contact Material Copper
• Thickness 1mm
• Overall Length 30mm
• Stock code SOLLR40064PCK
• Solarix M6 Insulated Ring Solar PV Terminal Connector Pack of 4
• Insulation Material Yellow PVC
• Inner Ring Diameter 6.35mm
• Outer Ring Diameter 10mm
• Minimum Wire Size mm² 2.5mm²
• Maximum Wire Size mm² 6mm²
• Minimum Wire Size AWG 12AWG
• Maximum Wire Size AWG 10AWG
• Stud Size M6
• Sleeve Colour Yellow
• Contact Plating Tin
• Contact Material Copper
• Thickness 1mm
• Overall Length 30mm
