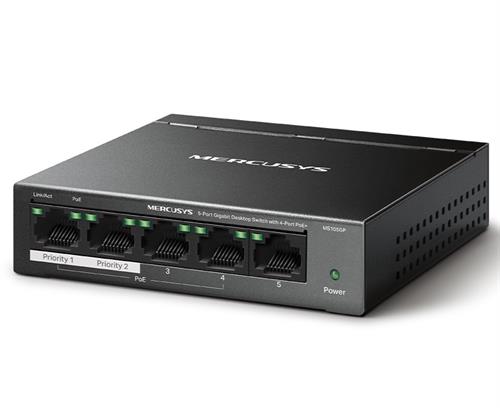

Mercusys MS105 5 Port Gigabit 5GB RJ45 Desktop Switch
Mercusys MS105 5 Port Gigabit 5GB RJ45 Desktop Switch
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
SKU
MS105GPVendor
MercusysProduct Type
Ethernet Switches PoEHurry! Only 1 left in stock
Estimated delivery: 5-7 Days from order date.
Free Shipping & Returns: On orders above $79
Let us know abour your query!
Contact Us
Description
Shipping Information
Reviews
Description
Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+ – 5GB RJ45 ports, with four PoE+ ports supporting up to 30W each and a total power budget of 65W. Supports data rates up to 2000 Mbps full duplex, jumbo frames up to 9 KB, and has a MAC address table of 2,000 entries. Durable metal case, plug and play operation, and options for desktop or wall mounting. Dimensions 99.8 x 98 x 25 mm. Operating temperature 0–40°C, humidity 10–90% RH non-condensing. Package includes power adapter and quick installation guide, Retail Box, 2 year Limited Warranty
Product Overview
Upgrade your network with the Mercusys MS105 5-Port Gigabit Desktop Switch, featuring five full Gigabit RJ45 ports for fast and reliable connectivity. With four PoE+ ports supporting up to 30W power each, along with extended transmission distance and isolation mode for stability and security, it offers efficient performance in a durable metal casing.
Specifications
-Product code: MS105GP
•Description: Mercusys MS105 5-Port Gigabit Desktop Switch
•Dimensions: 99.8*98*25mm
•PoE Ports : RJ45
•Standard: Compliant with 802.3 af/at Powered Devices
•PoE Ports: Port 1- Port 4
•PoE Power Budget: 65 W
•Interfaces : 5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
•External Power Supply : External Power Adapter (Output: 53.5V/1.31A)
•Installation : Desktop
•Wall Mount
•Standards and Protocols: IEEE 802.3x Flow Control
•Data Rates
•10/100/1000 Mbps at Half Duplex
•20/200/2000 Mbps at Full Duplex
•Jumbo Frame: 9 KB
•Mac Address Table : 2K
•Max Power Consumption: 3.13W（220 V / 50 Hz, no PD connected）
•75.15W（220 V / 50 Hz, with 65W PD connected）
•Max Heat Dissipation: 10.64 BTH/h （no PD connected)
•255.51 BTH/h（with 65W PD connected）
•5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)
•Quick Installation Guide
•Operating Temperature: 0℃~40℃ (32℉~104℉)
•Storage Temperature: -40℃~70℃ (-40℉~158℉)
•Operating Humidity: 10%~90% RH non-condensing
•Storage Humidity: 5%~95% RH non-condensing
