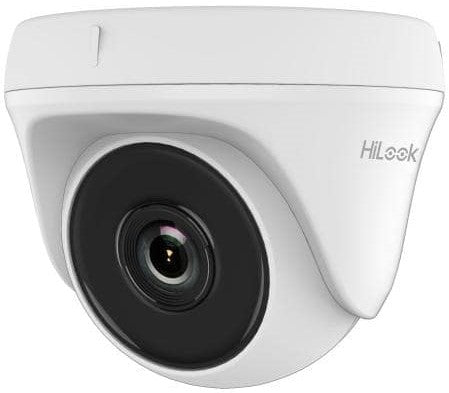

HiLook 2 MP Indoor Fixed Turret Camera - 1080p turret camera, Smart IR, up to 20 m IR distance, 4 in 1, Day And Night Mode, DWDR, Brightness, Sharpness, DNR, Mirror, Smart IR, 2 MP CMOS image sensor, Retail Box, 6 Months Warranty

Product Overview

The 2 MP Indoor Fixed Turret Camera offers clear 1920 × 1080 resolution with a 2 MP CMOS image sensor and supports multiple video outputs including TVI/AHD/CVI/CVBS. It features an adjustable lens with options for 2.8 mm or 3.6 mm focal lengths, providing wide fields of view and night vision up to 20 meters using an IR cut filter. Designed for versatile indoor use, it includes advanced image enhancements like Digital Wide Dynamic Range and Noise Reduction, all housed in a compact, durable plastic casing suitable for environments from -40°C to 60°C.

Features

•1080p turret camera
•Smart IR, up to 20 m IR distance
•4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Specifications

•Product Code: THC-T120-PC 2.8MM
•Description: HiLook 2 MP Indoor Fixed Turret Camera
Interface
•Video Output: 1 HD analog output
•Switch Button: TVI/AHD/CVI/CVBS
Menu
•Day/Night Mode: IR cut filter
•DWDR (Digital Wide Dynamic Range): Support
•Language: English
•Functions: Brightness, Sharpness, DNR, Mirror, Smart IR
•Backlight Compensation: Support
Camera
•Image Sensor: 2 MP CMOS image sensor
•Signal System: PAL/NTSC
Frame Rate
•PAL: 1080p@25fps
•NTSC: 1080p@30fps
•Resolution: 1920 (H) × 1080 (V)
•Shutter Time: 1/25 (1/30) s to 1/50,000 s
•Min. illumination: 0.02 Lux@(F2.0, AGC ON), 0 Lux with IR
•Lens: 2.8 mm, 3.6 mm
Horizontal Field of View
•2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
•3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
•Lens Mount: M12
•Day & Night: IR cut filter
•Synchronization: Internal synchronization
Angle Adjustment
•Pan: 0° to 360°
•Tilt: 0° to 75°
•Rotation: 0° to 360°
General
•Power Supply: 12 VDC ± 15%
•Power Consumption: Max. 2.1 W
•Material: Plastic
•IR Range: Up to 20 m
•Dimensions: Ø 85.4 mm × 76.12 mm ( Ø 3.38" × 2.67")
•130 g (0.29 lb.)
•Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F),
•Humidity: 90% or less (non-condensation)
