HiLook 2 MP ColorVu MD 2.0 Fixed Dome Network Camera - High quality imaging with 2 MP resolution, 24/7 colorful imaging, Support Human and Vehicle Detection, Water and dust resistant (IP67) and vandal resistant (IK08), Efficient H.265+ compression technology, Retail Box, 6 Months Warranty

Product Overview

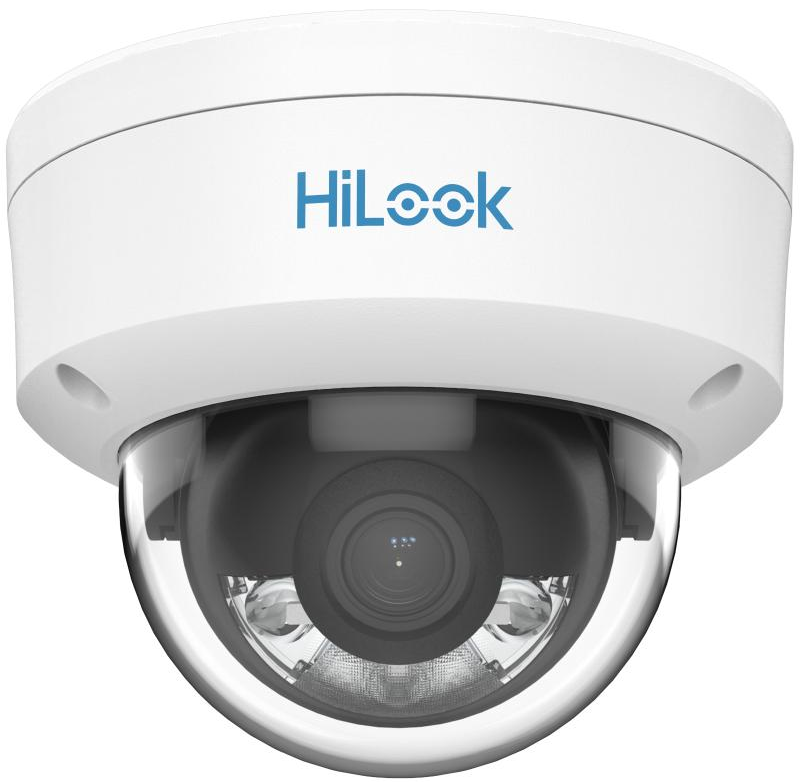

The HiLook IPC-D129HA is a 2 MP ColorVu MD 2.0 fixed dome network camera featuring a 1/2.8" Progressive Scan CMOS image sensor with a maximum resolution of 1920 × 1080. It offers 24/7 full-color imaging with low light sensitivity down to 0.001 Lux @ (F1.0, AGC ON) and includes a smart white light supplement effective up to 30 meters. The camera supports flexible angle adjustments (pan 0°–355°, tilt 0°–75°, rotate 0°–355°), H.265+/H.264+ video compression, and multiple network protocols for seamless integration in surveillance systems.

Features

•High quality imaging with 2 MP resolution
•24/7 colorful imaging
•Support Human and Vehicle Detection
•Water and dust resistant (IP67) and vandal resistant (IK08)
•Efficient H.265+ compression technology

Specifications

•Product Code: IPC-D129HA-2.8MM
•Description: HiLook 2 MP ColorVu MD 2.0 Fixed Dome Network Camera
•Image Sensor: 1/2.8" Progressive Scan CMOS
•Max. Resolution: 1920 × 1080
•Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
•Shutter Time: 1/3 s to 1/100,000 s
•Day & Night: 24/7 color imaging
Angle Adjustment
•Pan: 0° to 355°
•tilt: 0° to 75°
•rotate: 0° to 355°
•Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
•2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126°
•4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
•Lens Mount: M12
•Iris Type:Fixed
•Aperture: F1.0
Depth of Field
•2.8 mm: 1.5 m to ∞
•4 mm: 2.1 m to ∞
DORI
•2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
•4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
•Supplement Light Type: White Light
•Supplement Light Range: Up to 30 m
•Smart Supplement Light: Yes
Main Stream
•50 Hz: 25 fps (1920 × 1080, 1280 × 720)
•60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
•50 Hz: 25 fps (640 × 480, 640 × 360)
•60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
•Main stream: H.265+/H.265/H.264+/H.264,
•Sub-stream: H.265/H.264/MJPEG
•Video Bit Rate: 32 Kbps to 8 Mbps
•H.264 Type: Baseline Profile,Main Profile,High Profile
•H.265 Type: Main Profile
•Bit Rate Control: CBR,VBR
•Region of Interest (ROI): 1 fixed region(s) for main stream

•Simultaneous Live View: Up to 6 channels
•API: Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
•Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host
•Up to 32 users
•3 user levels: administrator, operator, and user
•Client: iVMS-4200,HiLookVision
Web Browser
•Plug-in required live view: IE 10, IE 11,
•Local service: Chrome 57.0+, Firefox 52.0+
