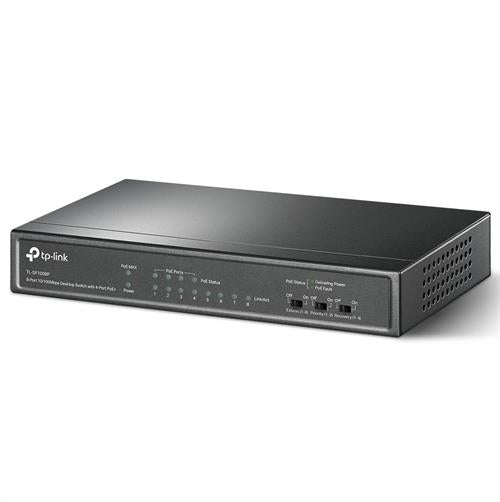

TP-Link 9-Port 10/100Mbps Desktop Switch
TP-Link 9-Port 10/100Mbps Desktop Switch
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
SKU
TL-SF1009PVendor
TP-LinkProduct Type
Ethernet Switches PoEHurry! Only 5 left in stock
Estimated delivery: 5-7 Days from order date.
Free Shipping & Returns: On orders above $79
Let us know abour your query!
Contact Us
Description
Shipping Information
Reviews
Description
TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+, Retail Box, 1 year Limited Warranty
Product Overview
Expand your network with the TP-Link TL-SF1009P. This versatile switch offers eight PoE+ ports to power devices like IP cameras or VoIP phones, along with a standard Ethernet port for additional connections. Its compact design and plug-and-play setup make it ideal for small offices and home networks.
Specifications
•Product code: TL-SF1009P
•Description: TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
•9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
•AUTO Negotiation
•AUTO MDI/MDIX
•Network Media
•10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•Fan Quantity Fanless
•Physical Security Lock Yes
•External Power Supply External Power Adapter (Output: 53.5VDC / 1.3A)
•Packet Forwarding Rate 1.3392 Mpps
•PoE Ports (RJ45)
•Standard: 802.3 af/at compliant
•PoE Ports: Ports 1–8
•Power Supply: 65 W
•Mac Address Table 2K
•Jumbo Frame 2 KB
•Switching Capacity 1.8 Gbps
•Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in
•(171 × 98 × 27 mm)
•Max Power Consumption
•3.6 (no PD connected)
•77.1 (with 65 W PD connected)
•Max Heat Dissipation
•12.3 BTU/h (no PD connected)
•262.8 BTU/h (with 65 W PD connected)
•Transmission Method Store-And-Forward
•Advanced Functions
•Compatible With IEEE 802.3af/at Compliant PDs
•Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
•Priority Mode Button (Ports 1–2)
•Isolation Mode Button (Ports 1–8)
•Mac Address Auto-Learning and Auto-Aging
•IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
