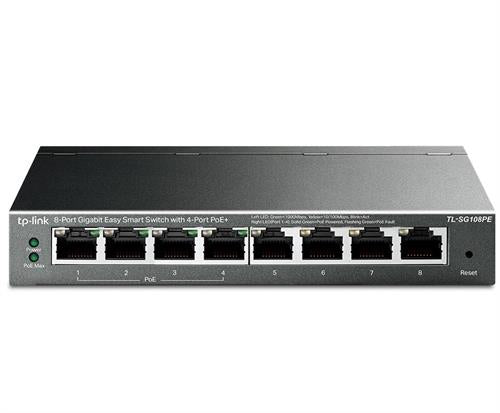

TP Link 8 Port Gigabit Easy Smart Switch with 4 Port PoE
TP Link 8 Port Gigabit Easy Smart Switch with 4 Port PoE
Nunc vehicula quam semper odio varius tincidunt. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posue.
SKU
TL-SG108PEVendor
TP-LinkProduct Type
Networking (Switch)Hurry! Only 5 left in stock
Estimated delivery: 5-7 Days from order date.
Free Shipping & Returns: On orders above $79
Let us know abour your query!
Contact Us
Description
Shipping Information
Reviews
Description
TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE, Retail Box, 1 year Limited Warranty
Product Overview
The TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE offers eight 10/100/1000 Mbps RJ45 ports, including four that deliver Power over Ethernet (PoE) to connected devices. It supports IEEE 802.3af/at standards, providing up to 30W per port for powering devices like IP cameras and access points.
Specifications
•Product code: TL-SG108PE
•Description: TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE
•Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
•IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
•Interface Eight 10/100/1000Mbps RJ45 Ports
•AUTO Negotiation/AUTO MDI/MDIX
•Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•Fan Quantity Fanless
•Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A)
•PoE Ports (RJ45) Standard: 802.3 af/at compliant
•PoE Ports: Port 1- Port 4
•PoE Power Budget: 64W
•Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
•Max Power Consumption 5.41 W (220V/50Hz with no PD connected)
•74.27 W (220V/50Hz with 64 W PD connected)
•Max Heat Dissipation 18.45 BTU/h (with no PD connected)
•253.26 BTU/h (with 64 W PD connected)
•Switching Capacity 16 Gbps
•Packet Forwarding Rate 11.9 Mpps
•MAC Address Table 4 K
•Packet Buffer Memory 1.5 Mb
•Jumbo Frame 16 KB
•Quality of Service Support Port-Based/802.1p/DSCP priority
•Support 4 priority queues
•Rate Limit
•Storm Control
•L2 Features IGMP Snooping V1/V2/V3
•Static Link Aggregation
•Port Mirroring
•Cable Diagnostics
•Loop Prevention
•PoE Auto Recovery
•VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
•MTU/Port/Tag VLAN
•Management Web-based GUI
•Easy Smart Configuration Utility
•Transmission Method Store-And-Forward
